Cross-connection TJ 145, hot-dip galvanised

SKU
1451944G
Login for Price

This cross connection is used to make cross connections between tubes. These cross connections are available for tube diameters varying from ½ "x ½" to 2 "x 1 ¼".

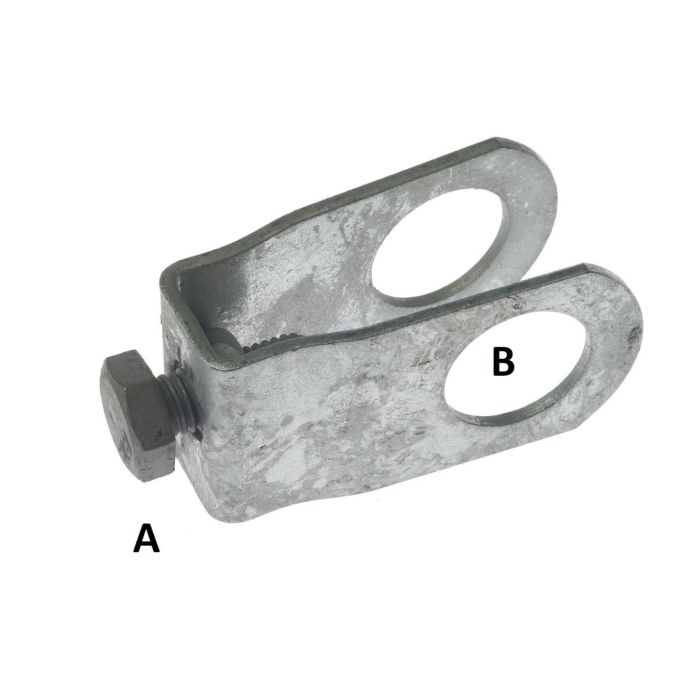

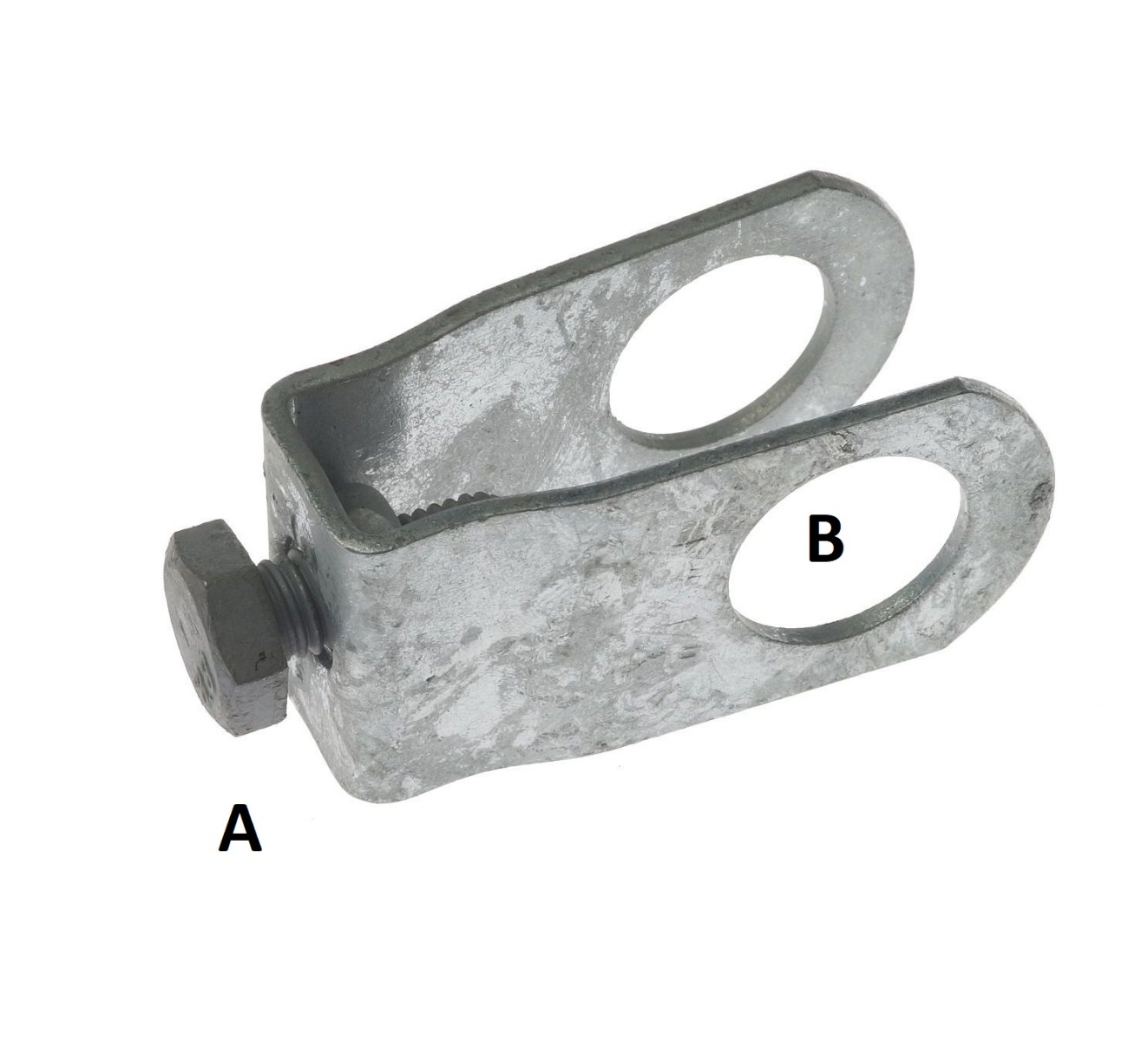

Size A: pipe size under the M10 bolt.

Size B: tube size of the two round holes.

main product photo
Grouped product items
Item # Base Material Diameter A Diameter B Finish VPE Qty
1451944 Press Metal ½" (21,3 mm) ½" (21,3 mm) Hot-dip Galvanized 100
1451954 Press Metal ¾" (26,9 mm) ½" (21,3 mm) Hot-dip Galvanized 100
1451955 Press Metal ¾" (26,9 mm) ¾" (26,9 mm) Hot-dip Galvanized 100
1451956 Press Metal ¾" (26,9 mm) 1" (33,7 mm) Hot-dip Galvanized 100
1451964 Press Metal 1" (33,7 mm) ½" (21,3 mm) Hot-dip Galvanized 100
1451965 Press Metal 1" (33,7 mm) ¾" (26,9 mm) Hot-dip Galvanized 100
1451966 Press Metal 1" (33,7 mm) 1" (33,7 mm) Hot-dip Galvanized 100
1451974 Press Metal 1¼" (42,4 mm) ½" (21,3 mm) Hot-dip Galvanized 50
1451975 Press Metal 1¼" (42,4 mm) ¾" (26,9 mm) Hot-dip Galvanized 50
1451976 Press Metal 1¼" (42,4 mm) 1" (33,7 mm) Hot-dip Galvanized 50
1451977 Press Metal 1¼" (42,4 mm) 1¼" (42,4 mm) Hot-dip Galvanized 50
1451984 Press Metal 1½" (48,3 mm) ½" (21,3 mm) Hot-dip Galvanized 50
1451985 Press Metal 1½" (48,3 mm) ¾" (26,9 mm) Hot-dip Galvanized 50
1451986 Press Metal 1½" (48,3 mm) 1" (33,7 mm) Hot-dip Galvanized 50
1451987 50
1451988 Press Metal 1½" (48,3 mm) 1½" (48,3 mm) Hot-dip Galvanized 50
1451994 Press Metal 2" (60,3 mm) ½" (21,3 mm) Hot-dip Galvanized 25
1451996 Press Metal 2" (60,3 mm) 1" (33,7 mm) Hot-dip Galvanized 25
1451997 Press Metal 2" (60,3 mm) 1¼" (42,4 mm) Hot-dip Galvanized 25
1451998 25
1453999 25
