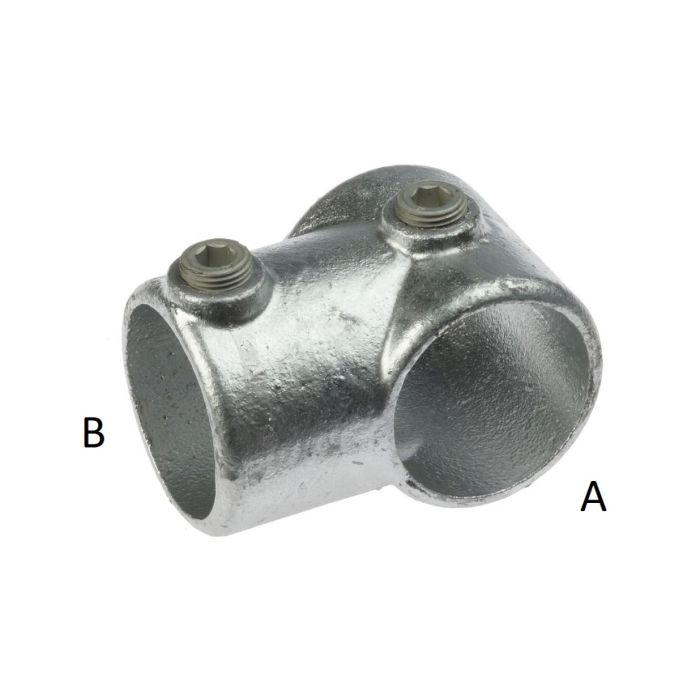

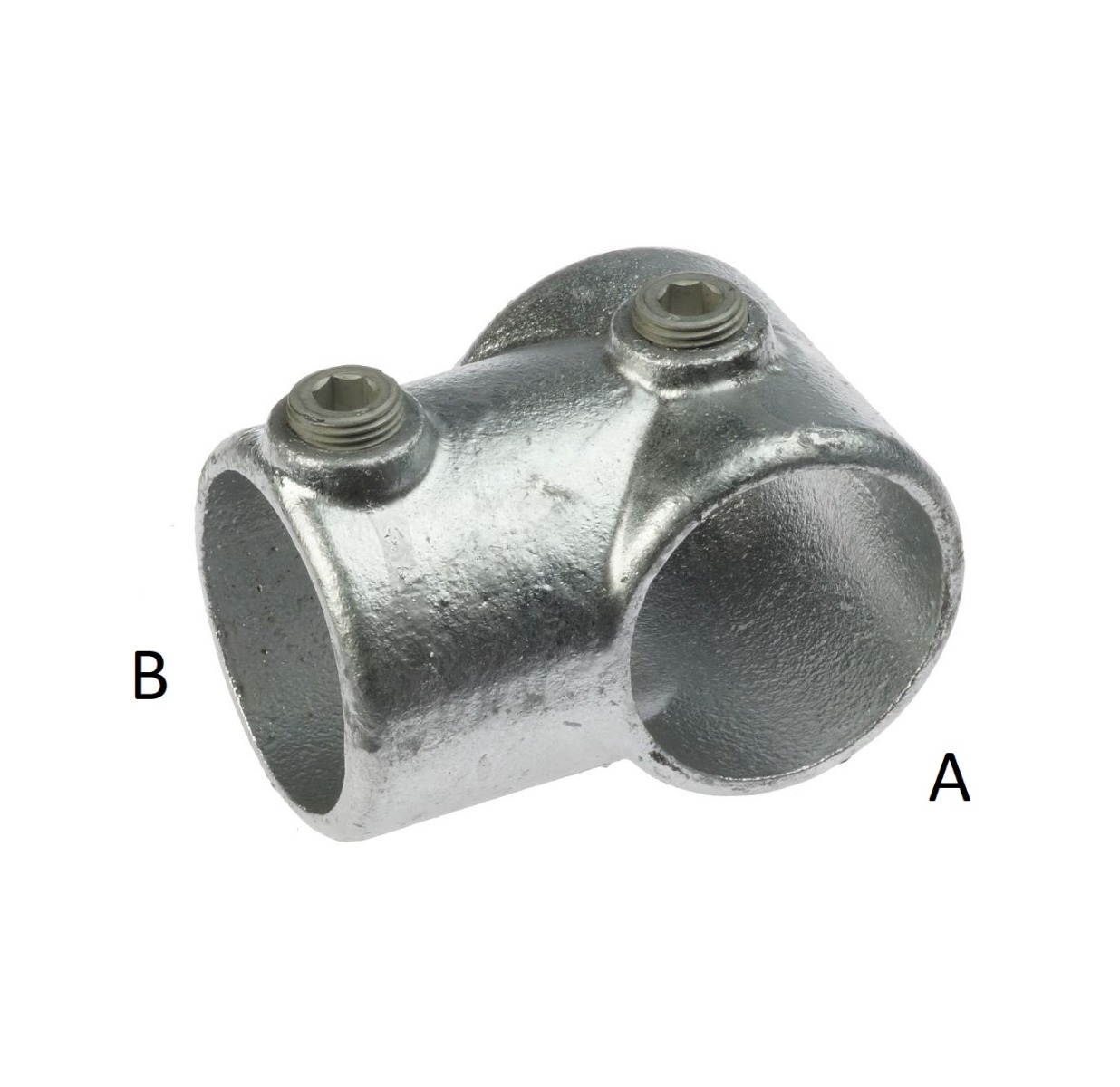

G101 Cast iron Short T-clamp A2, hot-dip galvanised

SKU

1610255G

Typically used on straight and level guardrail to connect the upright to the top rail or the end or mid rail to the upright. Tubes cannot be joined inside a 101; to join tubes inside the fitting use a 104. Normally used in conjunction with the 119 fitting when building two rail guardrail.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Item #	Base Material	Diameter A	Diameter B	Finish	VPE

1610255	Cast Iron	¾" (26,9 mm)	¾" (26,9 mm)	Hot-dip Galvanized	90
1610266	Cast Iron	1" (33,7 mm)	1" (33,7 mm)	Hot-dip Galvanized	60
1610267	Cast Iron	1" (33,7 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	50
1610276	Cast Iron	1¼" (42,4 mm)	1" (33,7 mm)	Hot-dip Galvanized	40
1610277	Cast Iron	1¼" (42,4 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	40
1610278	Cast Iron	1¼" (42,4 mm)	1½" (48,3 mm)	Hot-dip Galvanized	30
1610287	Cast Iron	1½" (48,3 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	30
1610288	Cast Iron	1½" (48,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	30
1610298	Cast Iron	2" (60,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	25
1610299	Cast Iron	2" (60,3 mm)	2" (60,3 mm)	Hot-dip Galvanized	20
1610244					0
