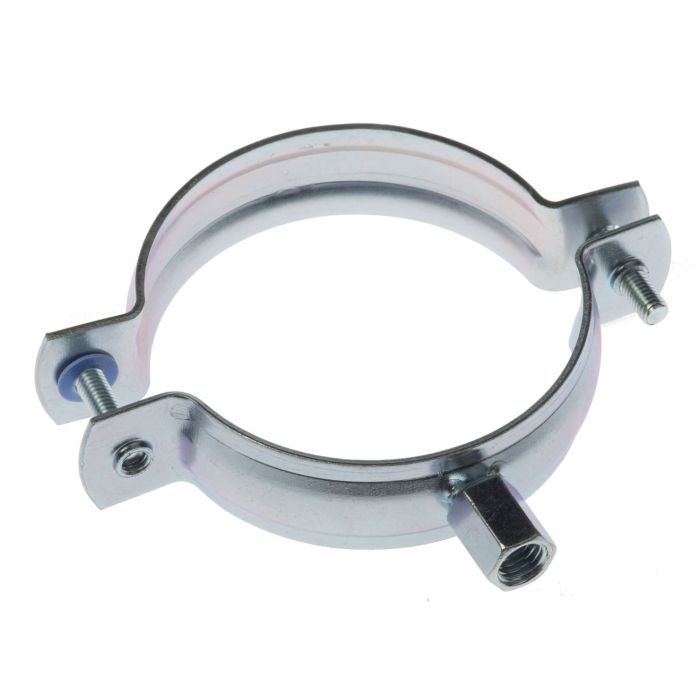

Pipe clamp M8/M10 zinc-plated

SKU
5023080G
Login for Price
This pipe bracket is zinc-plated and is used to mount pipes and tubes suspended. The pipe brackets are suitable for pipes and tubes with diameters ranging from 75 to 105 millimetres. The pipe bracket is fitted with a two-screw bracket and can be hung on either M8 or M10 bolts.
Grouped product items
Item # Pipe Diameter Minimum Pipe Diameter Maximum Base Material Thread Size Finish VPE Qty
5023080 75 mm 80 mm Steel M8/M10 Zinc Plated 25
5023092 87 mm 92 mm Steel M8/M10 Zinc Plated 25
5023105 99 mm 105 mm Steel M8/M10 Zinc Plated 25
Pijpbeugel M8/M10 elektrolytisch verzinkt
Pipe clamp M8/M10 zinc-plated
