U-bolt crossover clamp TG 45, hot-dip galvanised

SKU

0452855G

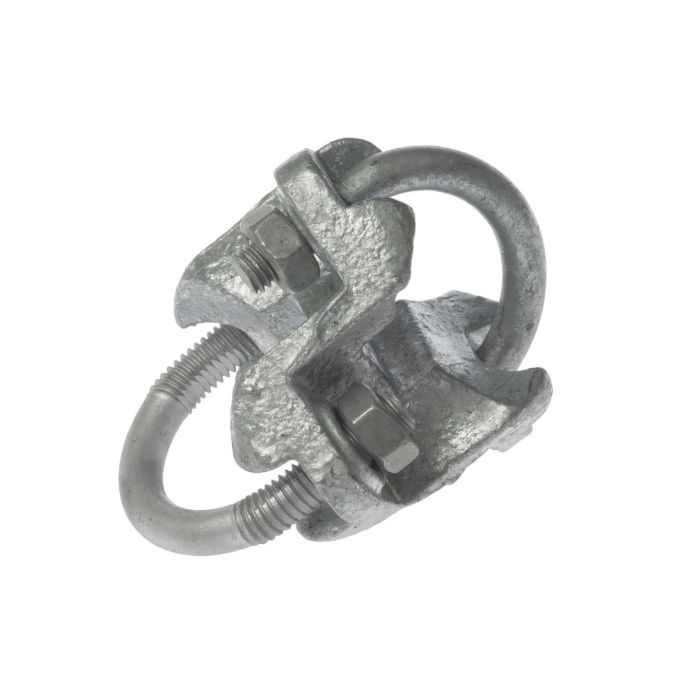

This cast cross clamp TG45 is suitable for making cross connections and is heavily equipped with a hot-dipped galvanised casting block and a pair of hot-dipped galvanised wire brackets. The wire brackets/repair brackets are also available separately. Ask our inside sales department.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Item #	Diameter A	Diameter B	Finish	VPE

0452855	¾" (26,9 mm)	¾" (26,9 mm)	Hot-dip Galvanized	50
0452865	1" (33,7 mm)	¾" (26,9 mm)	Hot-dip Galvanized	50
0452866	1" (33,7 mm)	1" (33,7 mm)	Hot-dip Galvanized	50
0452876	1¼" (42,4 mm)	1" (33,7 mm)	Hot-dip Galvanized	50
0452877	1¼" (42,4 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	50
0452886	1½" (48,3 mm)	1" (33,7 mm)	Hot-dip Galvanized	50
0452887	1½" (48,3 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	40
0452888	1½" (48,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	30
0452896	2" (60,3 mm)	1" (33,7 mm)	Hot-dip Galvanized	40
0452897	2" (60,3 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	40
0452898	2" (60,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	20
0452899	2" (60,3 mm)	2" (60,3 mm)	Hot-dip Galvanized	25
