T-Clamp (2 Part) TJ 210 hot-dip galvanised

SKU
2101855G
Login for Price

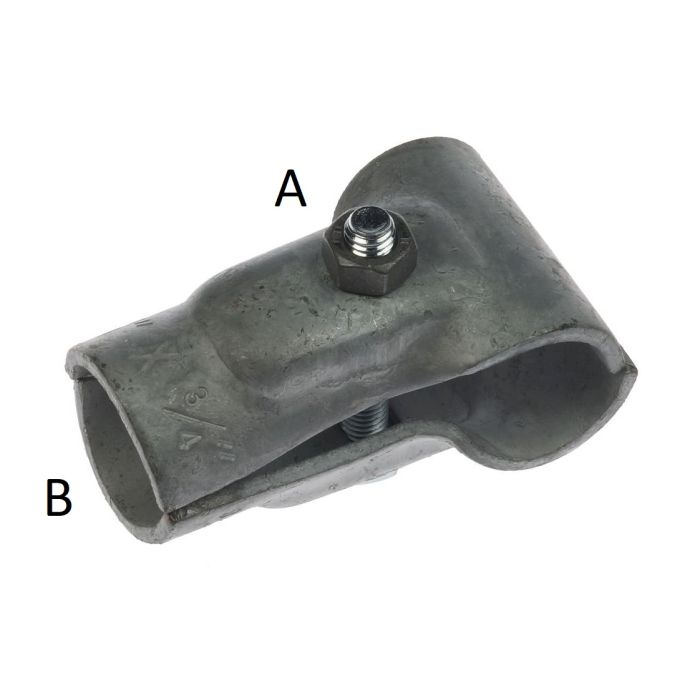

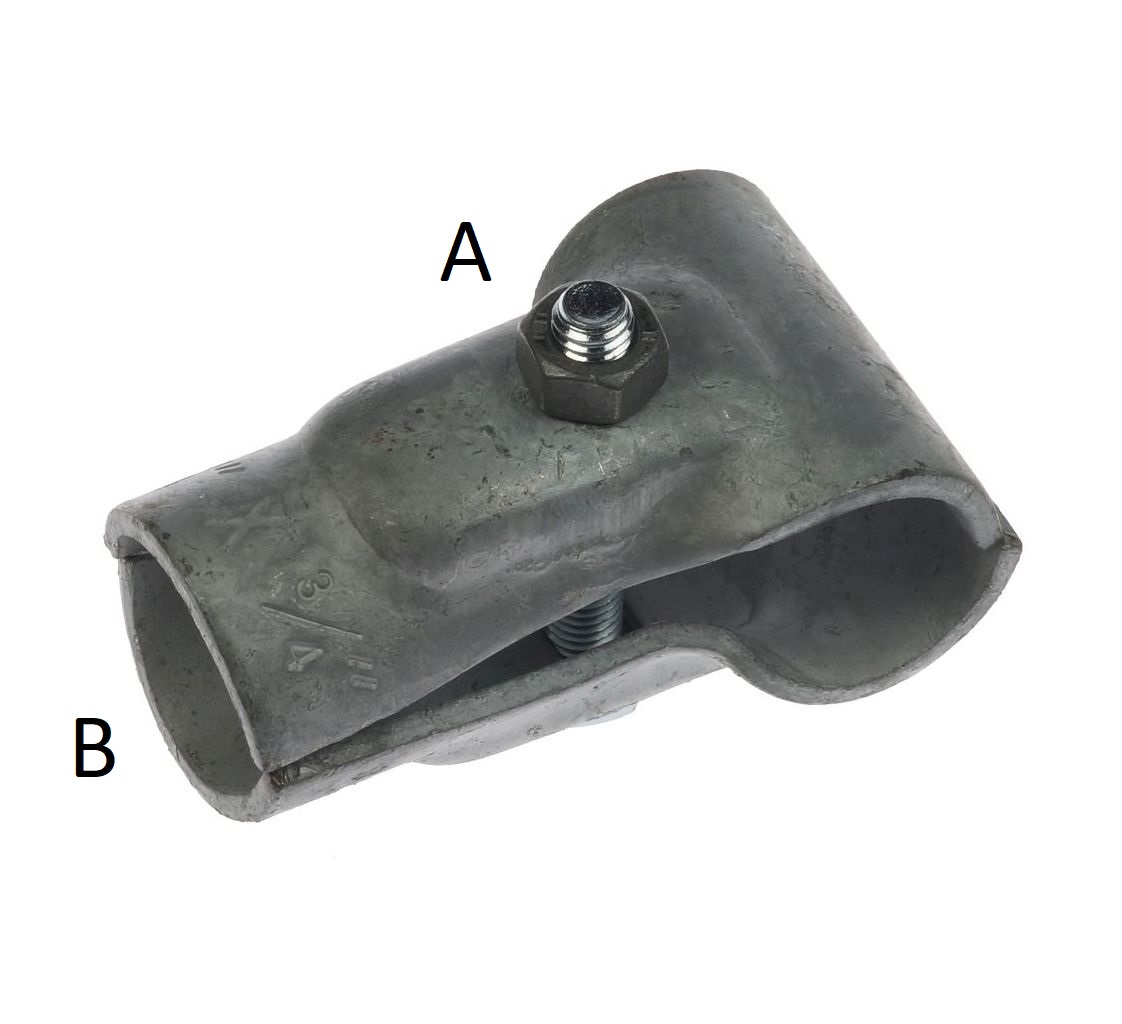

This 2-part T-clamp is hot-dip galvanized and is coming without bolts and nuts. In the dimensions in the illustration, A is the size for the continuous pipe, size B is for the right angle pipe. The T-clamp is available for several pipe diameters. The t-clamps come without bolts and nuts. The bolts and nuts can be ordered separately.
Grouped product items
Item # Base Material Diameter A Diameter B Finish VPE Qty
2101844 Press Metal ½" (21,3 mm) ½" (21,3 mm) Hot-dip Galvanized 25
2101855 Press Metal ¾" (26,9 mm) ¾" (26,9 mm) Hot-dip Galvanized 50
2101865 Press Metal 1" (33,7 mm) ¾" (26,9 mm) Hot-dip Galvanized 50
2101866 Press Metal 1" (33,7 mm) 1" (33,7 mm) Hot-dip Galvanized 50
2101876 Press Metal 1¼" (42,4 mm) 1" (33,7 mm) Hot-dip Galvanized 50
2101886 Press Metal 1½" (48,3 mm) 1" (33,7 mm) Hot-dip Galvanized 25
2101896 Press Metal 2" (60,3 mm) 1" (33,7 mm) Hot-dip Galvanized 25
2101908 Press Metal 2½" (76,1 mm) 1½" (48,3 mm) Hot-dip Galvanized 20
2101977 Press Metal 1¼" (42,4 mm) 1¼" (42,4 mm) Hot-dip Galvanized 25
2101987 Press Metal 1½" (48,3 mm) 1¼" (42,4 mm) Hot-dip Galvanized 25
2101988 Press Metal 1½" (48,3 mm) 1½" (48,3 mm) Hot-dip Galvanized 25
2101989 Press Metal 1½" (48,3 mm) 2" (60,3 mm) Hot-dip Galvanized 20
2101997 Press Metal 2" (60,3 mm) 1¼" (42,4 mm) Hot-dip Galvanized 25
2101998 Press Metal 2" (60,3 mm) 1½" (48,3 mm) Hot-dip Galvanized 25
2101999 Press Metal 2" (60,3 mm) 2" (60,3 mm) Hot-dip Galvanized 20
2101909 Press Metal 2½" (76,1 mm) 2" (60,3 mm) Hot-dip Galvanized 20
