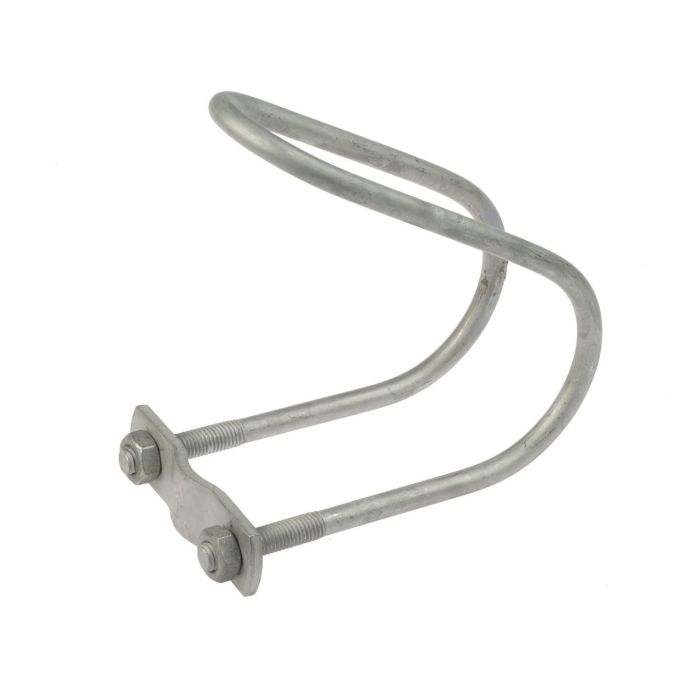

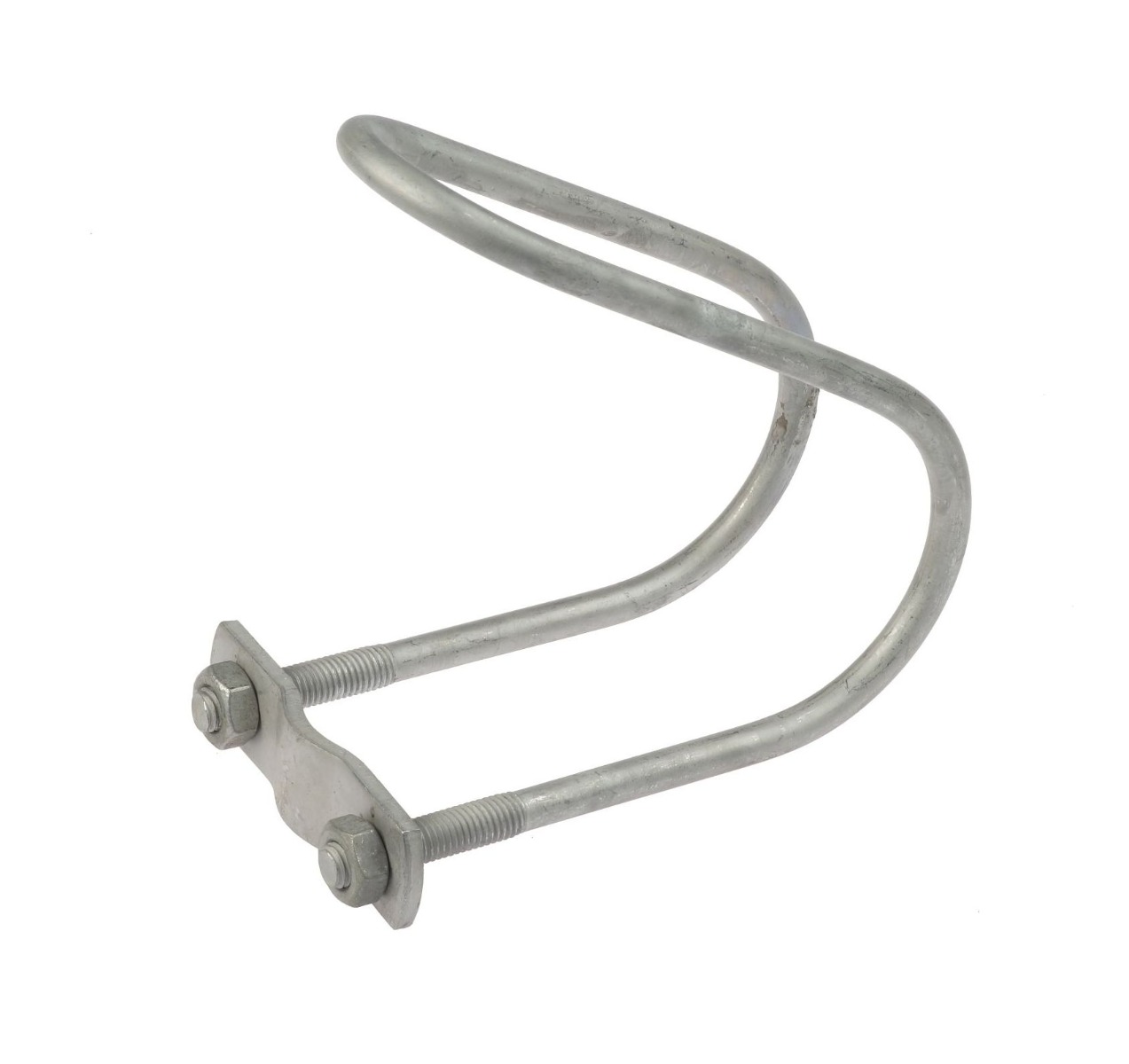

Wire Clamp TG 245, hot-dip galvanised oblique

SKU

2451980G

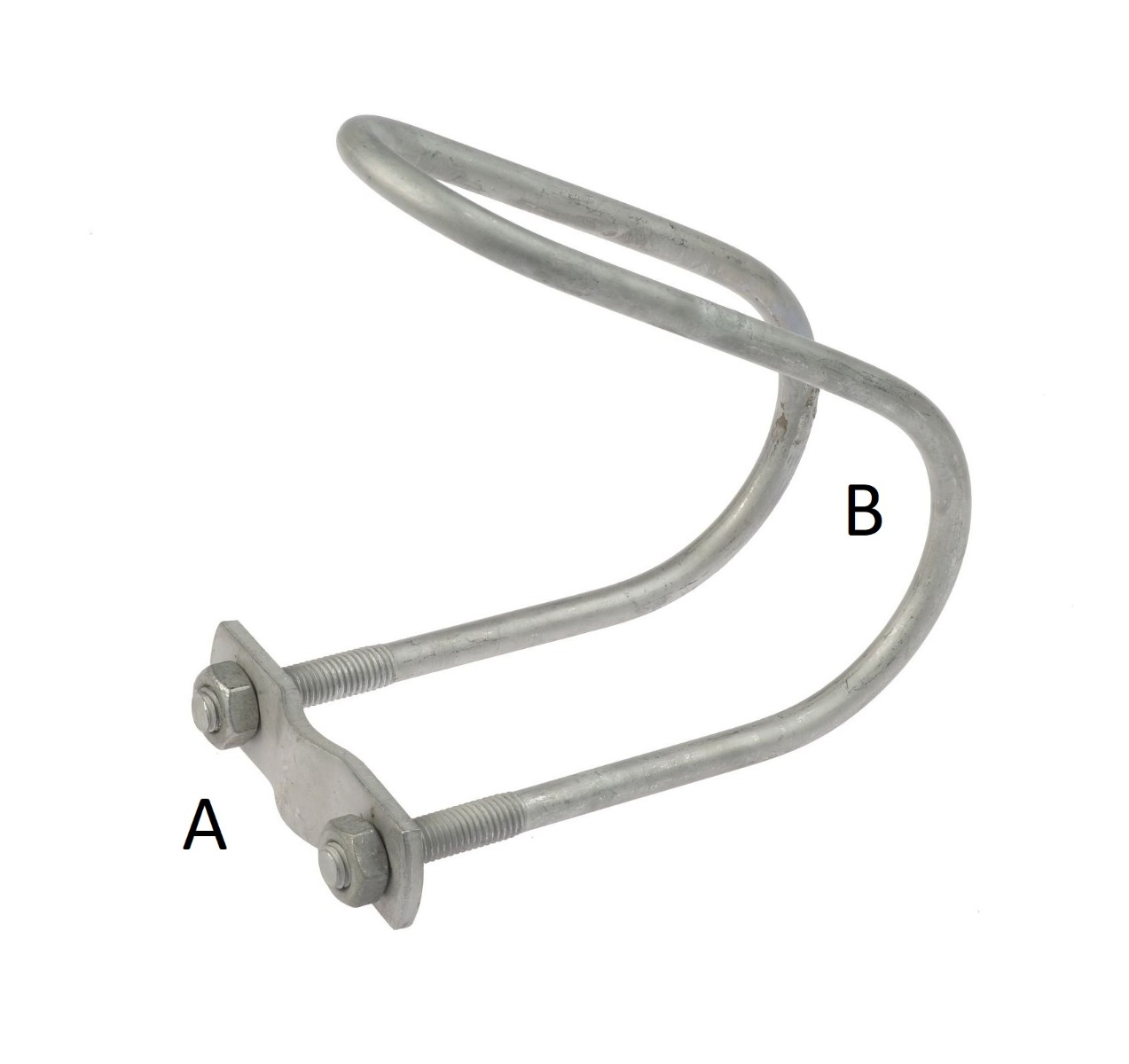

The TG 245 wire clamp is used to make cross connections with tubes and pipes and is suitable for several tube diameters. The first dimension (A) is the place at the base (where the backing plate is). Size B is the place at the bend.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Item #	Base Material	Thread Size	Diameter A	Diameter B	Finish	VPE
2451989	Steel	M10	1½" (48,3 mm)	2" (60,3 mm)	Hot-dip Galvanized	40
2451998	Steel	M10	2" (60,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	40
2451980	Steel	M10	1½" (48,3 mm)	2½" (76,1 mm)	Hot-dip Galvanized	50
2451988	Steel	M10	1½" (48,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	40
